Weld-On Solvent cements and Acrylic Adhesives

A pioneer and leading manufacturer of Weld-On® solvent cements and adhesives. Powerful adhesive technology you can trust to meet all your demanding acrylic jointing application. Specifically formulated to meet the needs of industrial applications, Weld-On industrial grade solvent cements contain a higher percentage of the most penetrating solvents and the highest quality resins which, in conjunction with the use of an industrial grade primer, produce the deepest fusion in the contact area between the pipe and fitting, and fills gaps with the correct cell class resins.

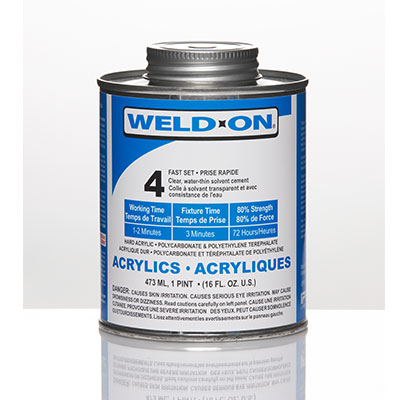

Weld-On® 4 acrylic adhesives

Weld-On® 4 is a water-thin cement formulated to develop clear bond within minutes.  It is less likely to leave white marks (commonly called blushing) with significant and increased strength reached over several hours.

SUBSTRATE RECOMMENDATIONS

A blush-resistant cement for bonding acrylic (poly-methyl methacrylate) to itself.

Also Check Substrate Match

BONDING RECOMMENDATIONS

The bond is achieved by first softening the surfaces to be joined and then fusing them together with dissipation of the solvent. Strong butt joints are made with flat sheets by using the soak method for such applications as cementing letters to acrylic panels.

Used extensively for fabrication and cementing of:
  • Acrylic letters to flat presentation panels
  • Display & presentation cases
  • Medical equipment assembly
  • Trim capping of cutout letters
  • Plastic containers & pre-forms
  • Solvent welded structures & subassemblies using the capillary method

Weld-On® 16 acrylic adhesives

Weld-On® 4 is a water-thin cement formulated to develop clear bond within minutes.  It is less likely to leave white marks (commonly called blushing) with significant and increased strength reached over several hours.

GENERAL DESCRIPTION

Weld-On® 16 is a medium-bodied, clear solvent-type acrylic cement with very high strength. The fast curing time means some parts may be handled within a few minutes when applied to cast, molded or extruded acrylics. Bond strength continues to develop very rapidly reaching a substantial level and forming strong joints within hours.

SUBSTRATE RECOMMENDATIONS

Especially formulated to bond acrylic (poly-methyl methacrylate) plastic. Also effective for bonding styrene, butyrate, PVC, ABS and polycarbonate, and porous plastic surfaces.

Also Check Substrate Match

BONDING RECOMMENDATIONS

Weld-On 16 is recommended as an excellent general purpose, high strength acrylic cement. Joints are water and weather resistant and will generally have similar physical and chemical properties to acrylic plastic. This product can be thinned with Weld-On 3 by approximately 10%.

Advantageous when fast cure and high strength are desired for applications such as

  • Large housings
  • Signs
  • Plastic letters
  • Industrial fabrications
  • Display items and models
  • Lenses

These terms of service ("Terms", "Agreement") are an agreement between the website ("Website operator", "us", "we" or "our") and you ("User", "you" or "your"). This Agreement sets forth the general terms and conditions of your use of this website and any of its products or services (collectively, "Website" or "Services").

GENERAL DESCRIPTION

Weld-On® 4 is a water-thin cement formulated to develop clear bond within minutes with a longer time full bond strength than Weld-On 3.  It is less likely to leave white marks (commonly called blushing) with significant and increased strength reached over several hours.

Not recommended for cross-linked acrylic.

SUBSTRATE RECOMMENDATIONS

A blush-resistant cement for bonding acrylic (poly-methyl methacrylate) to itself.

Also Check Substrate Match

BONDING RECOMMENDATIONS

The bond is achieved by first softening the surfaces to be joined and then fusing them together with dissipation of the solvent. Strong butt joints are made with flat sheets by using the soak method for such applications as cementing letters to acrylic panels.

Used extensively for fabrication and cementing of:

  • Acrylic letters to flat presentation panels
  • Display & presentation cases
  • Medical equipment assembly
  • Trim capping of cutout letters
  • Plastic containers & pre-forms
  • Solvent welded structures & subassemblies using the capillary method

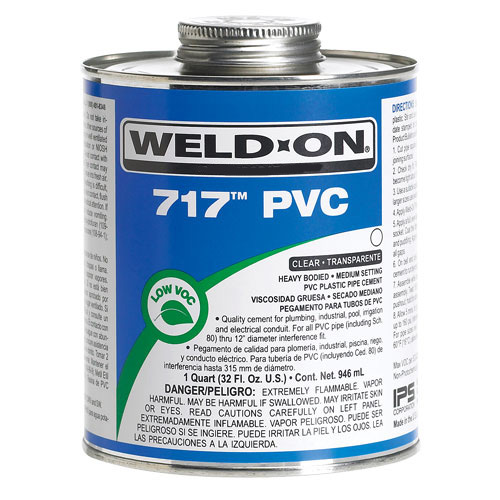

Weld-On® 717™ PVC

Heavy bodied, medium setting, low VOC PVC cement for all classes and schedules with interference fit through 12″ (315 mm) diameter. Quality formulation for plumbing, industrial, pool, irrigation and electrical piping systems. It has good gap filling properties and its medium set allows more working time in warm weather.

Weld-On® 717™ is a clear or gray, ultra low VOC emission, heavy bodied, medium setting, PVC solvent cement for all classes and schedules of pipe and fittings with interference fit through 12 inches (315 mm) diameter, including Schedule 80.

Applicable for use on all types of PVC plastic pipe applications, Type I and Type II. It is suitable for potable water pressure systems, industrial, irrigation, turf, conduit, sewer, drain, waste and vent systems.

  • Quality formula - ideal for plumbing, industrial, pool, irrigation and electrical piping systems.
  • Good gap filling properties and its medium set allows more working time in warm weather.
  • Ultra low VOC emissions. Meets SCAQMD Rule 1168/316A.
  • Green Guard Gold certified. Visit the UL Sustainable Database at www.spot.ul.com to find all the sustainable credits covered by UL Green Guard Gold.
  • High strength performance. Meets ASTM D2564 and the Uniform Plumbing Code. Certified by NSF International, CSA and IAPMO.
PRODUCT SPECIFICATIONS

Pipe type: All rigid PVC

Cement Uses: For potable water pressure systems, industrial, irrigation, turf, conduit, sewer, drain, waste and vent systems

Maximum  Diameter: 12 inches (315mm), including Schedule 80

Color: Clear or Gray

Relative Set Time: Medium

Body: Heavy Bodied

Performance Specification: ASTM D2564, SCAQMD Rule 1168/316A, NSF/ANSI Standard 14 and 61 IAPMO Uniform Plumbing Code CSA B137.3 and B181.2 (gray cement only)

Brookfield Viscosity: Minimum 1,600 cps

Specific Gravity: Clear 0.954 ± 0.04 Gray 0.956 ± 0.04

VOC: Emissions 411 g/L

Shelf Life: Clear: 4 Years     Gray: 3 Years

LEED  Compliant: Credit can be earned per LEED® (Leadership in Energy and Environmental Design), IEQ Credit 4.1

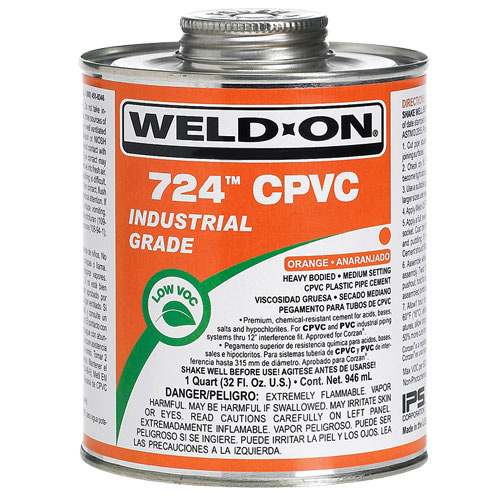

Weld-On® 724™ CPVC

Heavy bodied, medium setting, low VOC CPVC cement for all classes and schedules with interference fit through 12″ (315 mm) diameter.

Weld-On® 724™ CPVC is a heavy bodied, medium setting, low VOC CPVC cement for all classes and schedules with interference fit through 12″ (315 mm) diameter. Premium, high-strength, chemical-resistant solvent cement for use with CPVC piping systems carrying acids, bases, salts, and hypochlorites. Ideal for use in waste water plants. May be used on PVC industrial piping systems for chemical applications.

Specified in the largest semi-conductor plants.

Weld-On 724 should always be used with P-70 Primer.

724™ Industrial Grade

Weld-On® 724™ is an industrial grade, orange or gray, low VOC emission, heavy bodied, medium setting, CPVC solvent cement for all classes and schedules of pipe and fittings with interference fit, including Schedule 80 through 12 inches (315 mm) diameter.

Premium, high-strength, chemical-resistant solvent cement for use with CPVC piping systems carrying acids, bases, salts, and hypochlorites. Ideal for use in wastewater plants. May be used on PVC industrial piping systems for chemical applications.

  • Low VOC emissions. Meets SCAQMD Rule 1168/316A.
  • GreenGuard Gold certified. Visit the UL Sustainable Database at www.spot.ul.com to find all the sustainable credits covered by UL GreenGuard Gold.
  • High strength performance. Meets ASTM F493 and the Uniform Plumbing Code. Certified by NSF International and IAPMO.
PRODUCT SPECIFICATIONS

Pipe type: All Rigid CPVC and PVC

Cement Uses: For industrial CPVC and PVC piping systems with chemical applications Maximum Diameter 12” (315 mm) Color: Orange or Gray

Relative Set Time: Medium Set

Body: Heavy Bodied

Performance Specification: ASTM F493 SCAQMD Rule 1168/316A, NSF/ANSI Standard 14 and 61, IAPMO Uniform Plumbing Code

Brookfield Viscosity: Minimum 1,600 cps Specific  Gravity Gray 0.984 ± 0.04

VOC:  Emissions 457 g/L

Shelf Life: 2 Years

LEED Compliant: Credit can be earned per LEED® (Leadership in Energy and Environmental Design), IEQ Credit 4.1

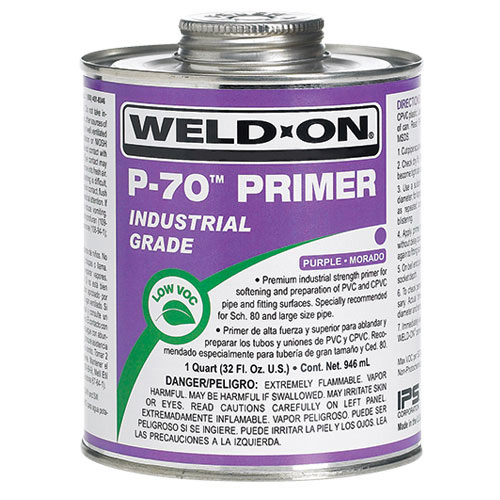

Weld-On® P-70™ primer

Premium, industrial strength, low VOC primer essential for proper softening and preparation of PVC and CPVC pipe and fitting surfaces. Specially recommended for use on Schedule 80 (PN 10 and higher) and large size pipe. Excellent for cold weather applications.

P-70™  Primer Industrial Grade

Weld-On® P-70™ primer is industrial grade, fast acting primer. Premium, industrial strength, ultra low VOC primer essential for proper softening and preparation of PVC and CPVC pipe and fitting surfaces. Specially recommended for use on Schedule 80 (PN 10 and higher) and large size pipe. Excellent for cold weather applications. Handle with care, will stain most materials and surfaces.

  • Ultra low VOC emissions. Meets SCAQMD Rule 1168/316A.
  • GreenGuard Gold certified. Visit the UL Sustainable Database at www.spot.ul.c​om to find all the sustainable credits covered by UL GreenGuard Gold.
  • High strength performance. Meets ASTM F656 and the Uniform Plumbing Code. Certified by NSF International and IAPMO.
PRODUCT SPECIFICATIONS

Pipe type: All Rigid CPVC and PVC

Primer Use: Soften and dissolve the joining surfaces of PVC and CPVC pipe and fittings prior to the application of solvent cement

Color: Clear or Purple

Performance Specification: ASTM F656 SCAQMD Rule 1168/316A NSF/ANSI Standard 14 and 61 IAPMO Uniform Plumbing Code  (Purple Only)

Brookfield Viscosity: Water-thin

Specific Gravity: 0.858 ± 0.04 (both clear and purple)

VOC:  Emissions 452 g/L

Shelf Life: 3 Years

LEED Compliant: Credit can be earned per LEED® (Leadership in Energy and Environmental Design), IEQ Credit 4.1

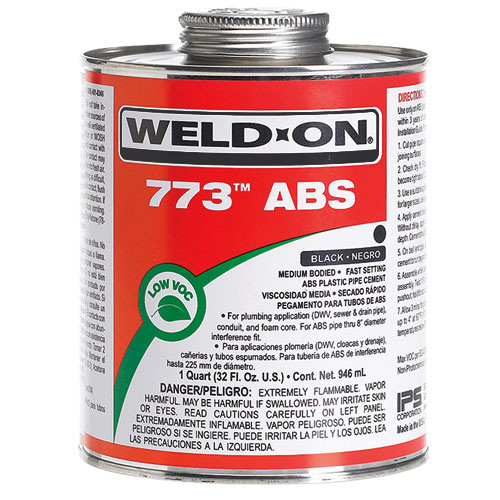

Weld-On® 773™ ABS

Medium bodied, fast setting, low VOC ABS cement for all classes and schedules with interference fit through 8″ (200 mm) diameter. For plumbing application (DWV, sewer, & drain pipe), conduit and foam core.

Weld-On® 773™ is a black, ultra low VOC emission, medium bodied, fast setting, ABS solvent cement for all classes and schedules with interference fit through 8” (200 mm) diameter.

For plumbing application (DWV, sewer and drainpipe), conduit and foam core.

 •  Ultra low VOC emissions. Meets SCAQMD Rule 1168/316A.

 •  GreenGuard Gold certified. Visit the UL Sustainable Database at www.spot.ul.com to find all the sustainable credits covered by UL GreenGuard Gold.

•  High strength performance. Meets ASTM D2235 and the Uniform Plumbing Code. Certified by NSF International and IAPMO.

PRODUCT SPECIFICATIONS

Pipe type: All Rigid ABS

Cement Uses: For drain, waste and vent systems (DWV), conduit and sewer applications

Maximum Diameter:  8 inches (200mm)

Color: Black

Relative Set Time: Fast

Body: Medium Bodied

Performance Specification: ASTM D2235, SCAQMD Rule 1168/316A, NSF/ANSI Standard 14, Uniform Plumbing Code

Brookfield Viscosity: Minimum 500 cps

Specific  Gravity: 0.90 ± 0.04

VOC:  Emissions 309 g/L

Shelf Life: 3 Years

LEED Compliant: Credit can be earned per LEED® (Leadership in Energy and Environmental Design), IEQ Credit 4.1

These terms of service ("Terms", "Agreement") are an agreement between the website ("Website operator", "us", "we" or "our") and you ("User", "you" or "your"). This Agreement sets forth the general terms and conditions of your use of this website and any of its products or services (collectively, "Website" or "Services").

GENERAL DESCRIPTION

Weld-On® 4 is a water-thin cement formulated to develop clear bond within minutes with a longer time full bond strength than Weld-On 3.  It is less likely to leave white marks (commonly called blushing) with significant and increased strength reached over several hours.

Not recommended for cross-linked acrylic.

SUBSTRATE RECOMMENDATIONS

A blush-resistant cement for bonding acrylic (poly-methyl methacrylate) to itself.

Also Check Substrate Match

BONDING RECOMMENDATIONS

The bond is achieved by first softening the surfaces to be joined and then fusing them together with dissipation of the solvent. Strong butt joints are made with flat sheets by using the soak method for such applications as cementing letters to acrylic panels.

Used extensively for fabrication and cementing of:

  • Acrylic letters to flat presentation panels
  • Display & presentation cases
  • Medical equipment assembly
  • Trim capping of cutout letters
  • Plastic containers & pre-forms
  • Solvent welded structures & subassemblies using the capillary method
