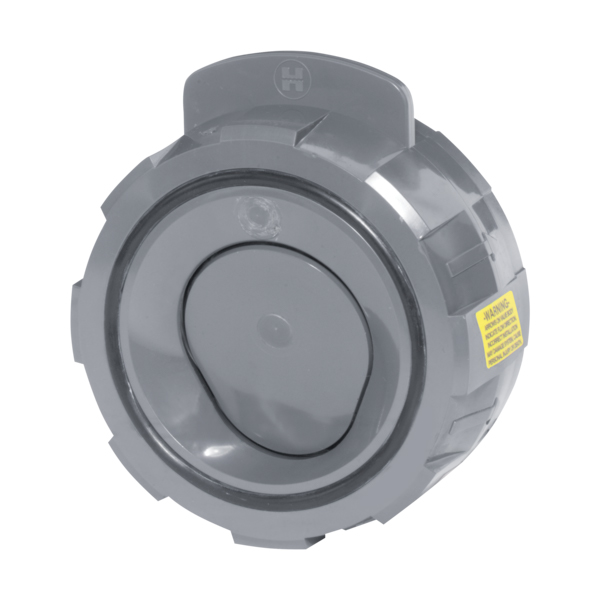

New Full Pattern Wafer Check Valves in PVC and CPVC, sizes 2" - 8' with FPM or EPDM Gasket and Disc Seals. Spring return option in 316 Stainless Steel or Hastelloy materials. No spacers or specialty flanges required.
Key Features and Benefits
• Robust Full Pattern Body
• Available in PVC and CPVC
• No Special Spacers or Flanges Required
• High Cv Rating, Saves on Energy and Pump Wear
• FPM or EPDM Gasket and Face Seal
• One-Piece Disc and Shaft Design
• Designed for ANSI150 and PN10 Flanges*
• Contoured Inlet Port for Reduced Head Loss
• Lower Closing Pressure than Swing Check Valves
• Integral Bolt Eyes for Ease of Installation for Large Sizes (4" - 8")
• Can be Installed in Vertical or Horizontal Position
• Pressure Rated to 150 PSI/PN10 in All Sizes
Product Options
• 316 Stainless Steel or Hastelloy® Disc Spring
Material Classes
• PVC per ASTM D1784 Cell Class 12454
• CPVC per ASTM D1784 Cell Class 23447
• FPM and EPDM Gasket and Disc Seals
For additional technical information please use the link below
