Product Description

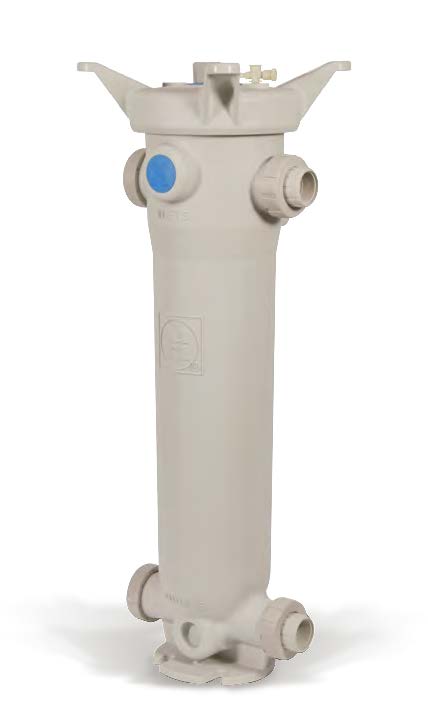

Offered in the revolutionary Platinum GFPP featuring true union end connections in 1-1/4 in. to 4 in sizes, with socket, threaded, fusion or flanged ends. One piece injection molded construction. FPM seals standard, with EPDM optional. Pressure rated for 150psi at 70F non-shock, with flow rates up to 100 GPM up to 2 inch; 150 GPM for 2-1/2 inch to 4 inch end connections. Available in size 1 and size 2 vessels, as well as Simplex, Duplex or Triplex assemblies. Metric (DIN/EN) connections also available.
Pipe Size 2 in
Configuration Simplex
Vessel Length Single Length
Body End Connector Material GFPP / GFPP
Sealing Material FPM
End Connection Type Flanged
Pressure Rating 150 PSI
Flow Rate 100 GPM
• Platinum Glass Filled Polypropylene
• One-Piece Injection Molded Construction
• Hand Removable, Ergonomic Cover with Liquid Displacing Dome
• Vent Valve Included on Cover
• Simplex Rated up to 100 GPM
• Duplex Rated up to 150 GPM
• True Union Socket, Threaded or Flanged End Connections
• In-Line or Loop Flow Configurations
• Double Length Solid Basket
• Drain Port at Bottom
• Integral Mounting Base
• Easier Installations Due to True Union Connectivity
• Vertical Flow Flutes in Basket, No Bag Snag and More Flow Area
• Gauge with Gauge Guard• Pressure Differential Gauge and Switch• EPDM Seals• Cartridge Adapters• Hinged Basket• 316 Stainless Steel Basket
• GFPP per ASTM D4101, Cell Class 85580
• FPM Standard O-Ring Seals
For additional technical information please use the link below
